What is the difference between Hyperledger and Hyperledger?

hyperledgerI am frequently asked this question because there is some confusion related to the legacy name and the current branding of certain technology. The two are distinct. And how we got there involves a little history.

Hyper, the parent company of Hyperledger, was founded by Dan O’Prey and Daniel Feichtinger in the spring of 2014. Fun fact: one of the alternative names they considered using was “Mintette.com” — after the term coined by Ben Laurie in his 2011 paper.

The simplest way to describe Hyperledger, the technology platform from Hyper, during its formative year in 2014 was: Ripple without the XRP. Consensus was achieved via PBFT.1 There were no blocks, transactions were individually validated one by one.

Hyperledger, the technology platform from Hyper, was one of the first platforms that was pitched as, what is now termed a permissioned distributed ledger: validators could be white listed and black listed. It was designed to be first and foremost a scalable ledger and looked to integrate projects like Codius, as a means of enabling contract execution.

Most importantly, Hyperledger in 2014 was not based off of the Bitcoin codebase.

Note: in the fall of 2014 Richard Brown and I both became the first two advisors to Hyper, the parent company of Hyperledger.  Our formal relationship ended with its acquisition by DAH.2

In June 2015, DAH acquired Hyper (the parent company of Hyperledger) which included the kit and caboodle: the name brand, IP and team (the two Dans).  During the same news release, it was announced that DAH had acquired Bits of Proof, a Hungary-based Bitcoin startup that had designed a Java-based reimplementation of Bitcoin (which previously had been acquired by CoinTerra).3

It was proposed at that time that Hyperledger, the Hyper product, would become the permissioned ledger project from DAH.  It’s product landing page (courtesy of the Internet Archive) uses roughly the same terminology as the team had previously pitched it (see also the October homepage older homepage for DAH as well).

digital asset homepage october 2015

Source: Digital Asset / Internet Archive

On November 9, 2015, on a public blog post DAH announced that it was “Retiring Hyperledger Beta, Re-Open Sourcing Soon, and Other Changes.”

The two most notable changes were:

(1) development would change from the languages of Erlang and Elixir to Java and Scala;

(2) switch to the UTXO transaction model

The team noted on its blog in the same post:

We are also switching from our simplistic notion of accounts and balances to adopt to de facto standard of the Bitcoin UTXO model, lightly modified. While Hyperledger does not use Bitcoin in any way, the Bitcoin system is still extremely large and innovative, with hundreds of millions of dollars invested. By adopting the Bitcoin transaction model as standard, users of Hyperledger will benefit from innovation in Bitcoin and vice versa, as well as making Hyperledger more interoperable.

During this same time frame, IBM was working on a project called OpenChain, which for trademark reasons was later renamed (now internally referred to as OpenBlockchain).4

IBM’s first public foray into distributed ledgers involved Ethereum vis-a-vis the ADEPT project with Samsung (first announced in January 2015). Over the subsequent months, IBM continued designing its own blockchain (see its current white paper here).

In December 2015, the Linux Foundation publicly announced it was creating a new forum for discussion and development of blockchain technology.  Multiple names were proposed for the project including Open Ledger (which was the name originally used in the first press release). However, in the end, the name “Hyperledger” was used.

How did that occur?

DAH, one of the founding members of the project, donated two things to the Linux Foundation: (1) the brand name “Hyperledger” and (2) the codebase from Bits of Proof.

Recall that Bits of Proof was the name of a Bitcoin startup that was acquired by DAH in the fall of 2014 (the Chief Ledger Architect at DAH was the co-founder of Bits of Proof). 5 Architecturally, Bits of Proof is a Java-implementation of Bitcoin. 6

In other words: today the term “Hyperledger” represents an entirely different architectural design and codebase than the original Hyperledger built by Hyper.7

The major architectural switch occurred in November 2015, which as noted above involved adopting the UTXO transaction set and Java language that Bits of Proof was built with.  Therefore, Hyperledger circa 2016 is not the same thing as Hyperledger circa 2014.

Over the past two months there have been multiple different codebases donated to the Linux Foundation all of which is collectively called “Hyperledger” including the IBM codebase (partly inspired by Ethereum) as well as the DAH and Blockstream codebase (one is a clone of Bitcoin and the other is a set of extensions to Bitcoin). The technical discussions surrounding this can be found on both the public Linux Foundation mailing list and its Slack channel.

How do different, incompatible codebases work as one?

This technical question is being discussed in the Linux Foundation. It bears mentioning that as of now, the codebases are incompatible largely due to the fact that Bitcoin uses the UTXO transaction set and OpenBlockchain uses an “accounts” based method for handling balances.  There are other reasons for incompatibility as well, including that they are written in completely different languages: Java/Scala versus Go versus C++ (Blockstream).

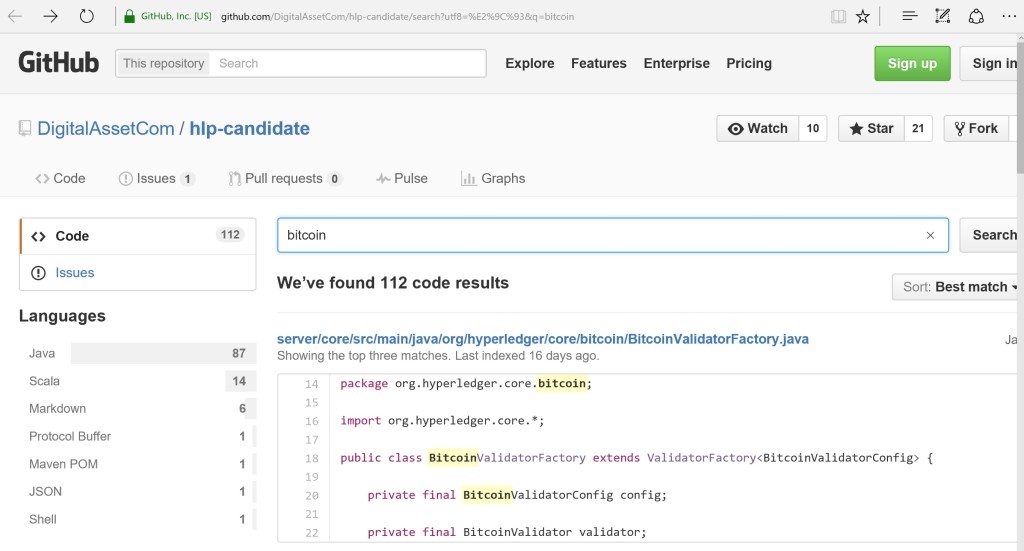

How extensive is the reuse of the Bits of Proof Bitcoin codebase donated to the Linux Foundation from the DAH team?  According to a quick scan of their GitHub repo:

So when someone asks “what is Hyperledger technology?” the short answer is: it is currently the name of a collective set of different codebases managed by the Linux Foundation and is not related to the original distributed ledger product called Hyperledger created by Hyper. The only tenuous connection is the name.

Timeline in brief: Hyperledger was originally created in Spring 2014 by Hyper; Hyper was acquired in June 2015 by DAH; the original Hyperledger architecture was entirely replaced with Bits of Proof in November 2015; the Hyperledger brand name and Bits of Proof code was donated to the Linux Foundation in December 2015.

  1. Interestingly enough, the current OpenBlockchain project from IBM also uses PBFT for its consensus mechanism and uses an “accounts” based method; two characteristics that the original Hyperledger platform from Hyper had too. []
  2. For more info on the original Hyperledger, see the Innotribe pitch; the description in Consensus-as-a-service from April 2015 and the Epicenter Bitcoin interview. []
  3. Following the bankruptcy of CoinTerra, the Bits of Proof team became independent once again. []
  4. CoinPrism launched a project called OpenChain, before IBM did. []
  5. Sometimes there is a confusion between Bits of Proof and Bits of Gold.  Bits of Proof was the independent Java-implementation of Bitcoin (which is not the same thing as bitcoinj).  Bits of Gold is an Israeli-based Bitcoin exchange.  A co-founder of Bits of Gold also works at DAH and is their current CTO. []
  6. In the future it may contain some modifications including Elements from Blockstream. []
  7. What was once the original Hyperledger GitHub repo has been handed over to the Linux Foundation but some of the original code base and documentation from the 2014 project can still be viewed elsewhere. []
